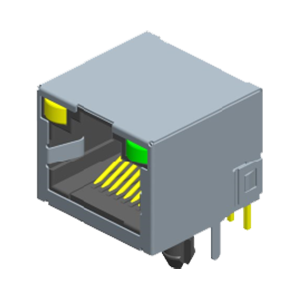

31516-xxxxxxxxx-xxx

Electrical

Voltage Rating: 125V AC.
Current Rating: 1.5A Max.
Contact Resistance: 50mΩ.
Dielectric Withstanding Voltage:1000 V AC MIN.
INSULATION Resistance:500MΩ min.
Operating Temp:-40℃ ~ +85℃



Specification(Abbreviation)

Family: RJ

Type: Standard

PCB Mounting: DIP

Operation Direction: Right angle

Product Width (mm): 16.3

Product Length(Depth)(mm): 15.6

Product Height(mm): 13.1

PCB to Top Height (mm): 13.1

Tab(Up/Down): Tab Up

LED (Yes/No): Yes

Ports: 1 x 1

Position/Contact: 8P8C

Transformer Type: N/A

HSF: ROHS
