Industry / IPC

Industry products may use in the transportation, telecom/datacom, computer and peripherals, and industrial segments. The connectors of Industrial products should ensure the functions remain reliable and stable and provide safety and protection feature.

Product

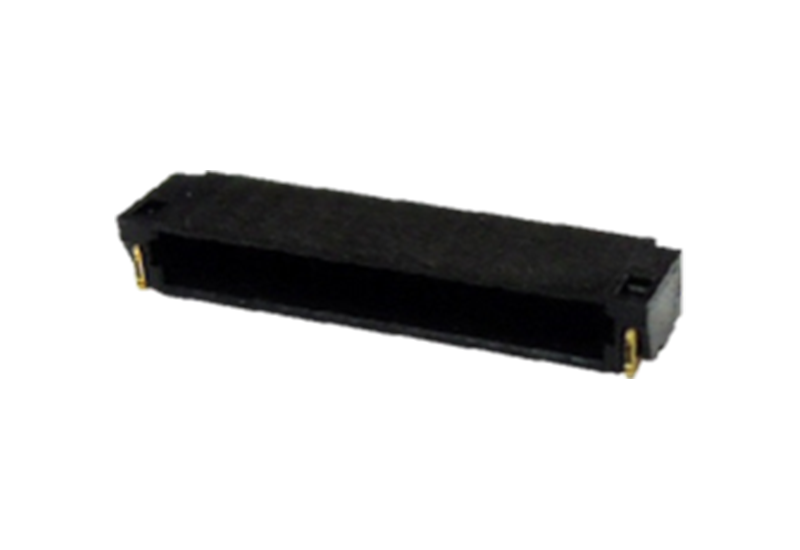

0.5mm Pitch

Features
Pitch: 0.5mm
Circuits: >=10 pins
Contact Position: D/R
Mounting Type: SMT
Operation Direction: S/T
Mating Height: 3.0-13.0mm
0.8mm Pitch

Features
Pitch: 0.8mm
Circuits: >=10 pins
Contact Position: D/R
Mounting Type: SMT
Operation Direction: S/T
Mating Height: 2.2-17.9mm

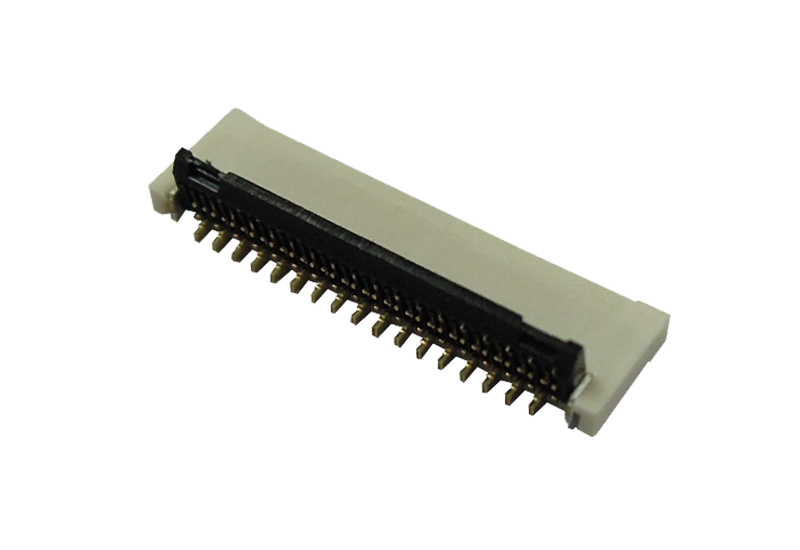

Back Flip Type

Features
Pitch: 0.30-1.00mm
Circuits: >=4 pins
Contact Position: D/C, T/C
Mounting Type: SMT
Operation Direction: R/A
Product Height: 1.00-2.45mm
Cable Thickness: 0.2 & 0.3mm

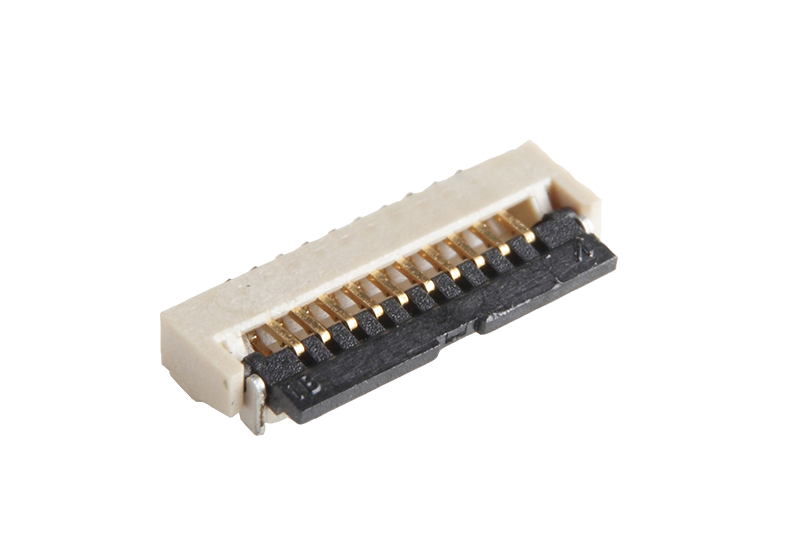

Front Flip Type

Features
Pitch: 0.30-1.00mm
Circuits: >=4 pins
Contact Position: B/C
Mounting Type: SMT
Operation Direction: R/A
Product Height: 0.98-2.50mm
Cable Thickness: 0.2 & 0.3mm

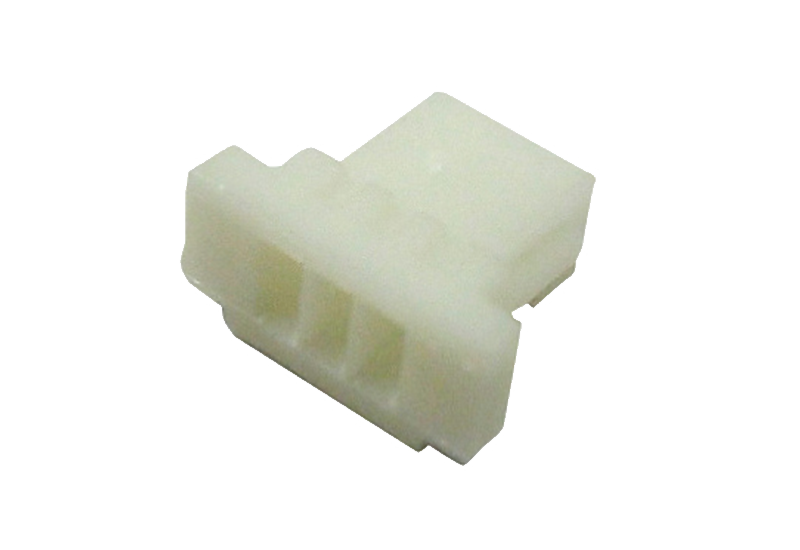

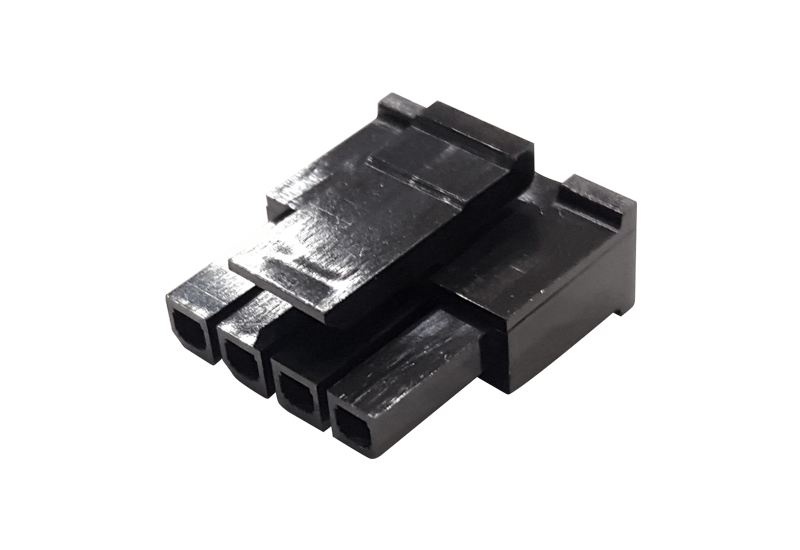

Housing

Features
Pitch: 1.00~3.96mm
Circuits: 2~50 pins
Row: Single, Double

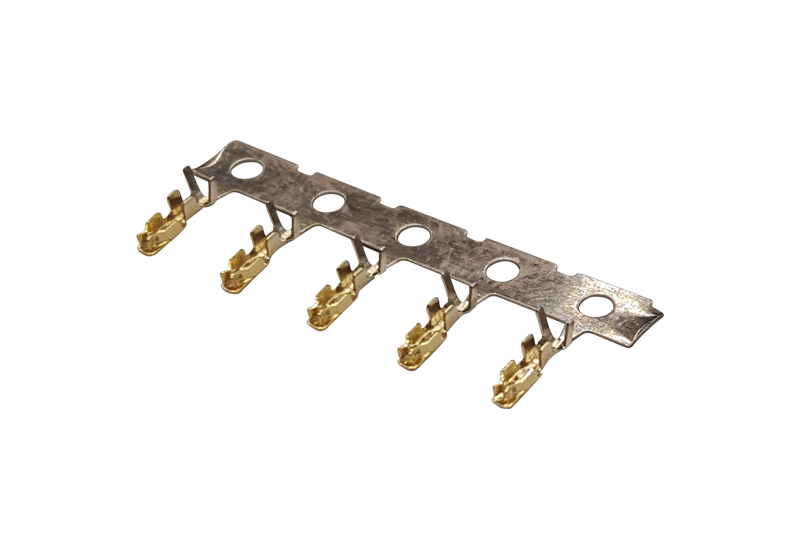

Terminal

Features
Pitch: 1.00~3.96mm
Current: 0.5~7A
IDC Female

Features
Pitch: 0.60~1.25mm
Circuits: 2~18 pins
IDC Male

Features
Pitch: 0.60~1.25mm
Circuits: 2~18 pins
Mounting Type: SMT
Operation Direction: R/A, S/T
Row: Single Row

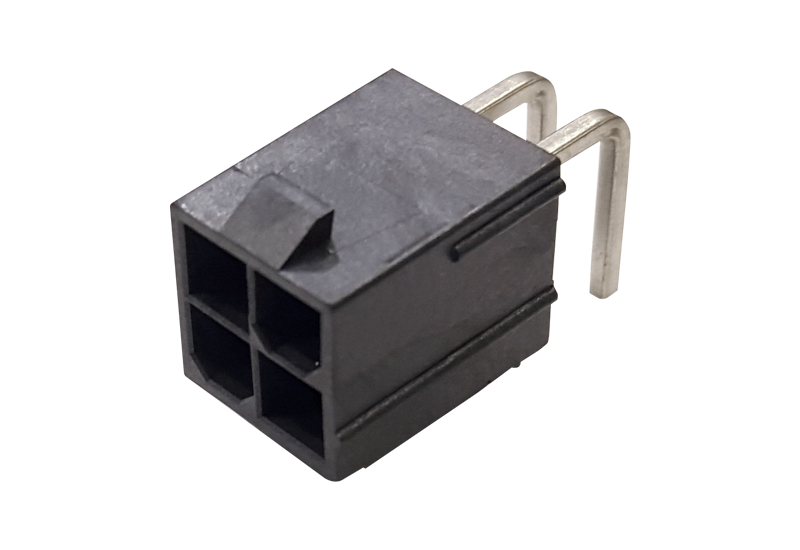

Mini Lock

Features
Pitch: 4.2 mm
Mounting Type: DIP
Operation Direction: R/A
Row: Double Rows
Circuits: 4~24 pins
Working Voltage: 36 Volts AC/Per Pin
AWG: 16~28
Current: 8A Max

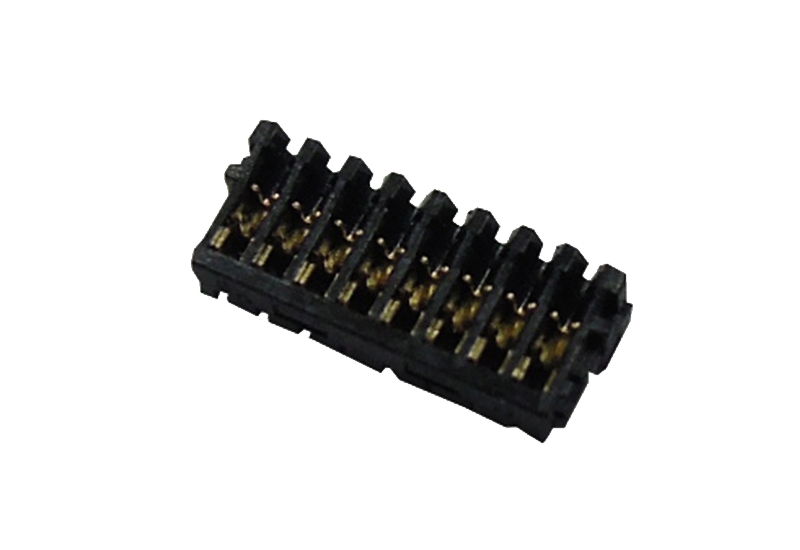

Micro Lock

Features
Pitch: 3.0 mm
Mounting Type: SMT
Operation Direction: R/A
Product Height: 5.57mm
Row: Single
Circuits: 2~24 pins
Working Voltage: 36 Volts AC/Per Pin
AWG: 20~30
Current: 7A Max

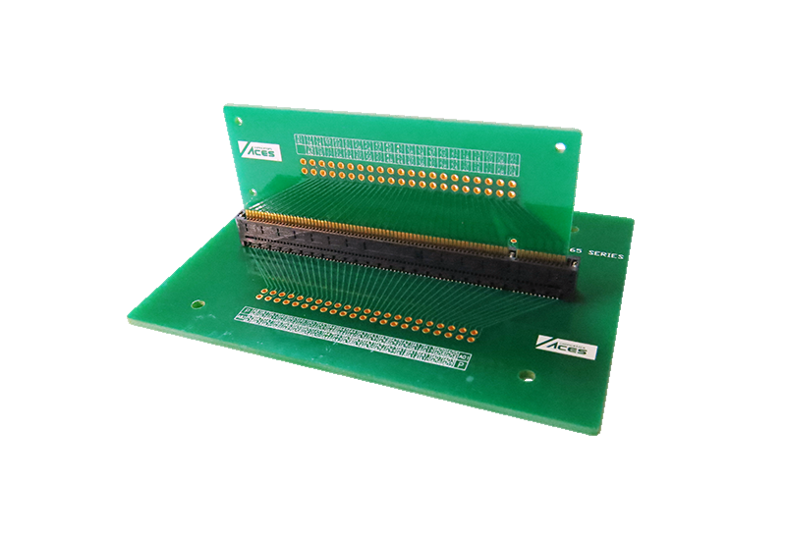

Card Edge

Features
PCIe Gen3 8G
PCIe Gen4 16G
PCIe Gen5 32G

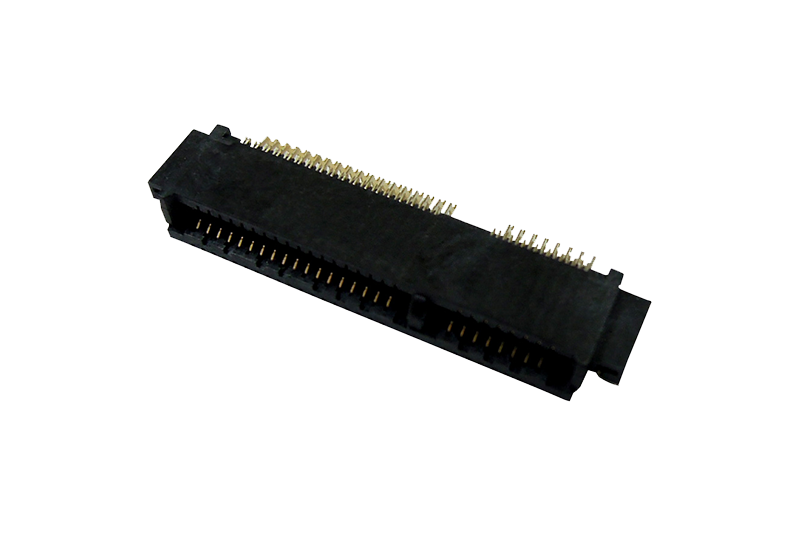

Mini PCI express

Features
Circuits: 52 pins
Mounting Type: SMT
Operation Direction: R/A
Product Height: 4.0/5.2/5.6/5.75/6.5/6.8/7.0/8.0/8.5/9.9mm(Max)

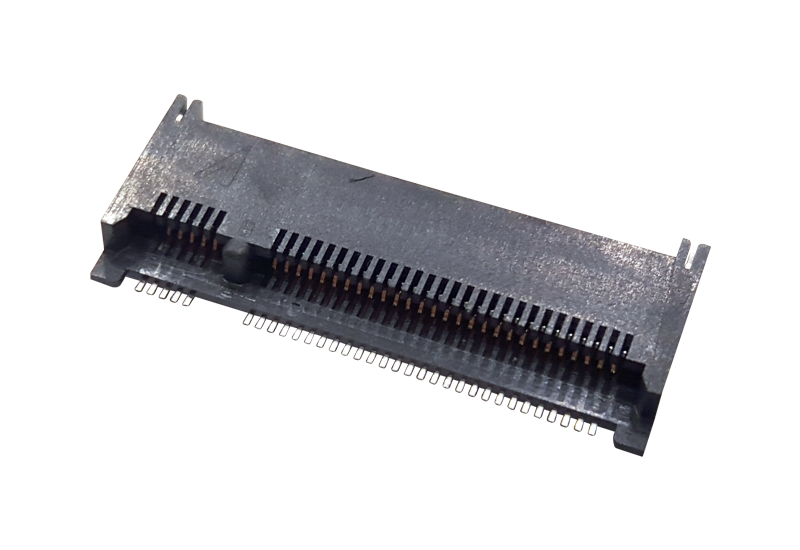

M.2

Features
Circuits: 67 pins
Mounting Type: SMT
Operation Direction: R/A
Standard Type, Key A/B/E/M,
Product Height: 2.25/3.05/3.2/4.2/5.5/6.7/8.5mm

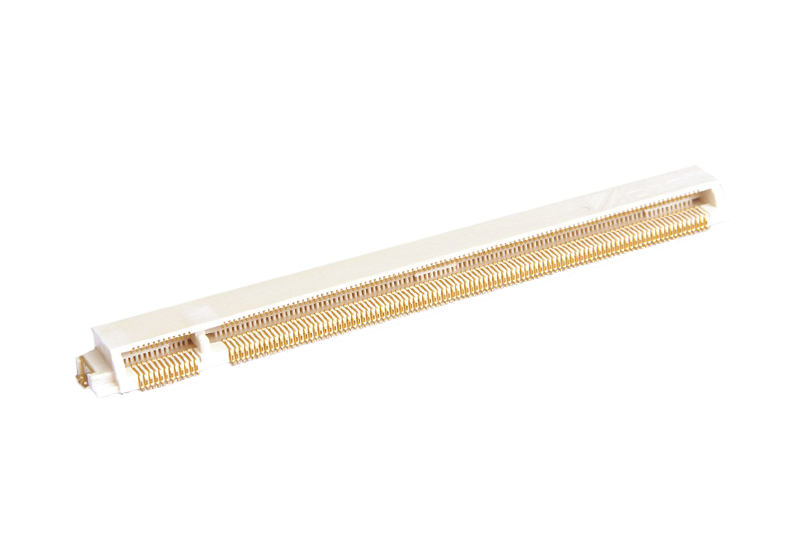

MXM

Features
Circuits: 230pins / 314pins
Mounting Type: SMT
Operation Direction: R/A
Product Height: 4.0/4.8/5.2/6.5/7.5/9.5mm

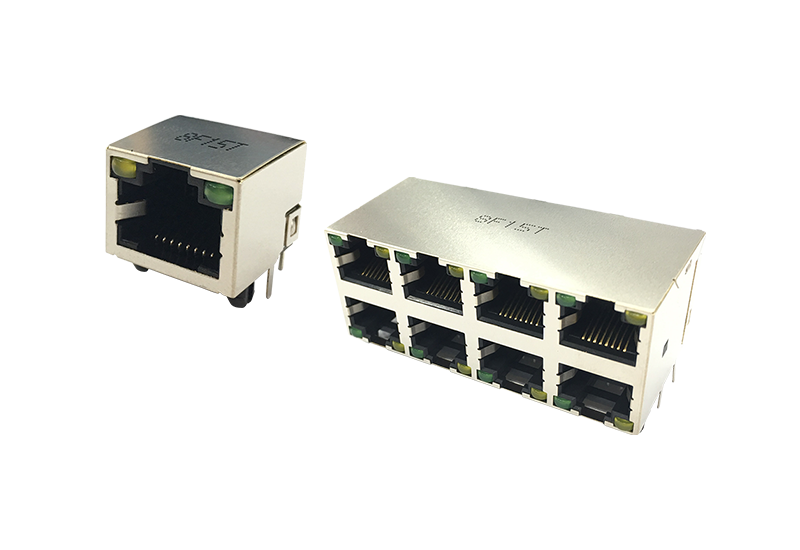

RJ

PCB Mount: Standard/Sinking
Ports: 1*1~2*4

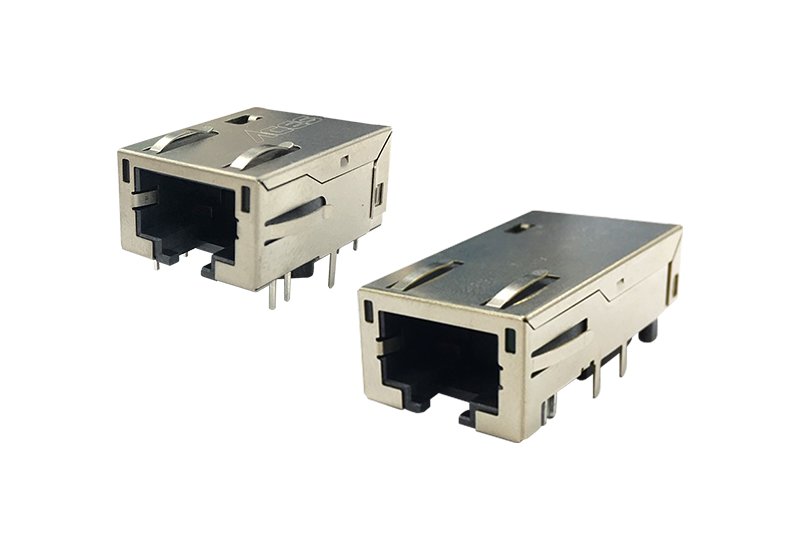

RJ Transformer

PCB Mount: Standard/Sinking
Ports: 1*1~2*4

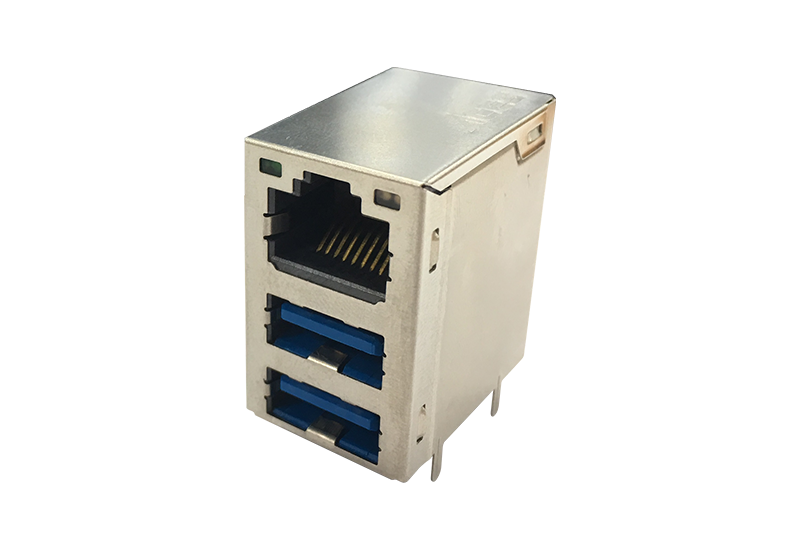

RJ Transformer USB3

PCB Mount: Standard
Ports: Stack
Gen Z

Features
Gen Z ,SFF-TA-1002
High Speed from 56GT/s PAM4
Type: Vertical
(with shell /without shell)
straddle mount host board thickness
(1.57mm/1.93mm/2.36mm)

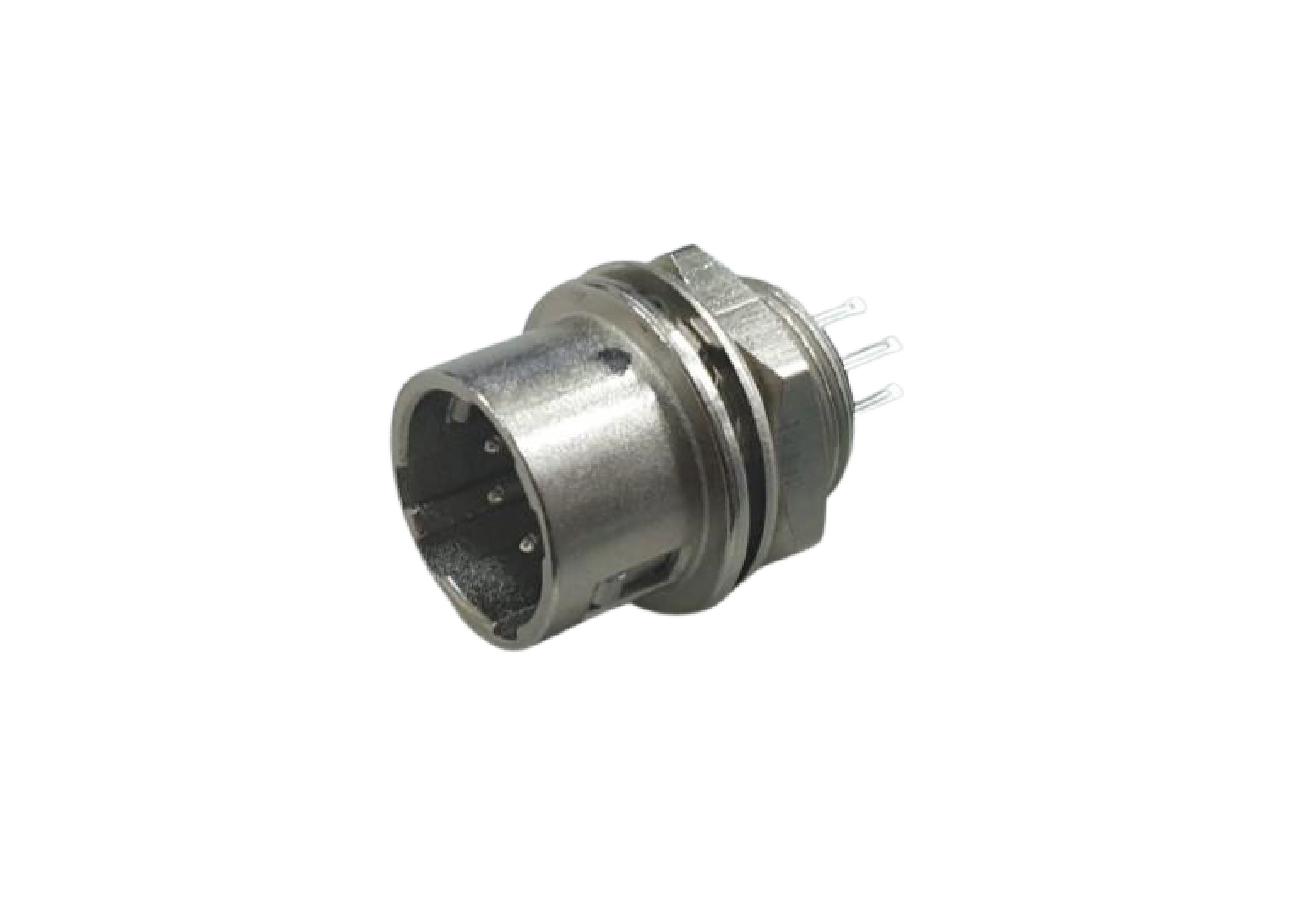

Receptacle Type

Circuits: 6/12 pins
Dip Type
Current：2A (Per Pin)

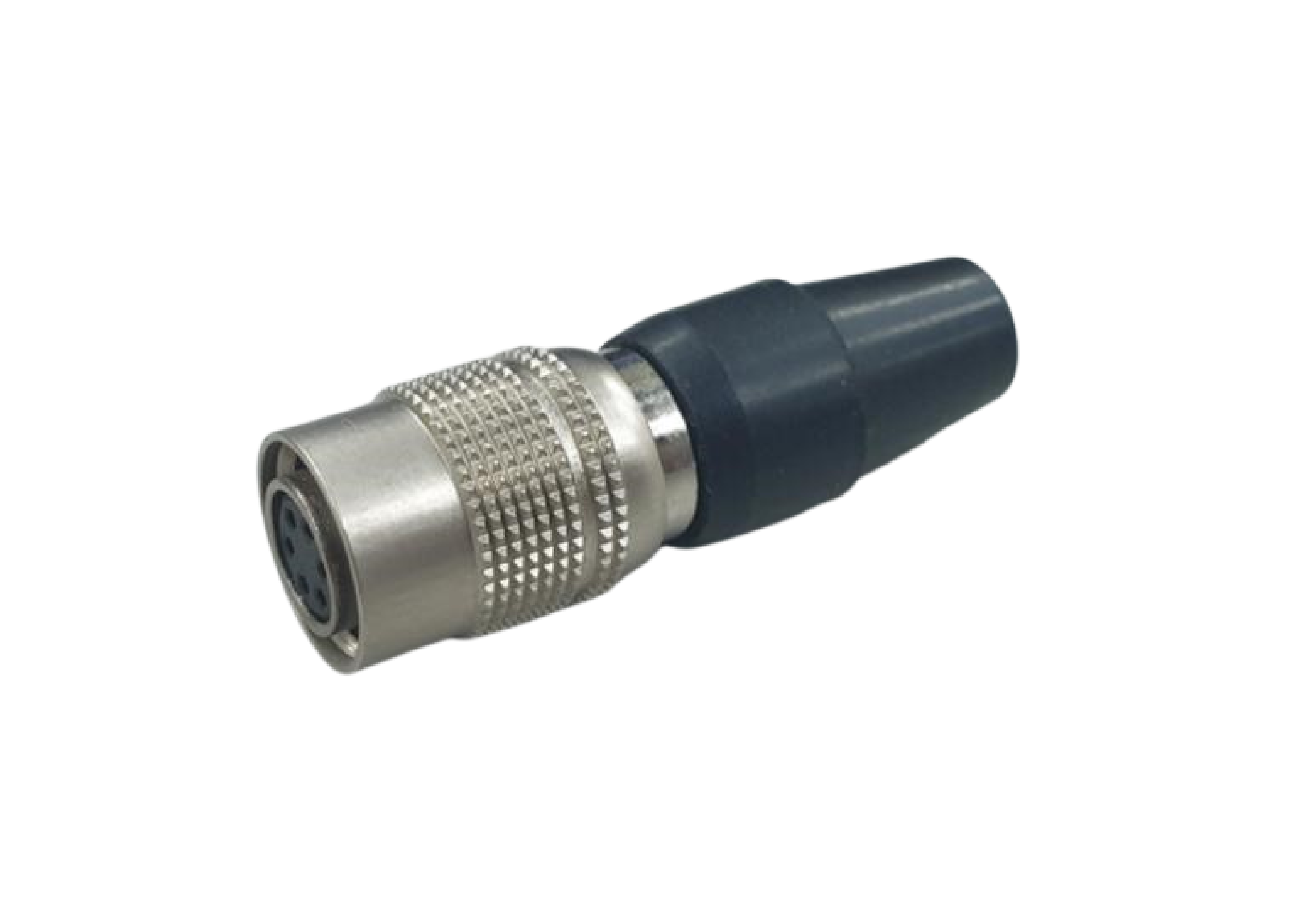

Plug Type

Circuits: 6/12 pins
Solder Type
Current：2A (Per Pin)
Hi-Stack Drawings
