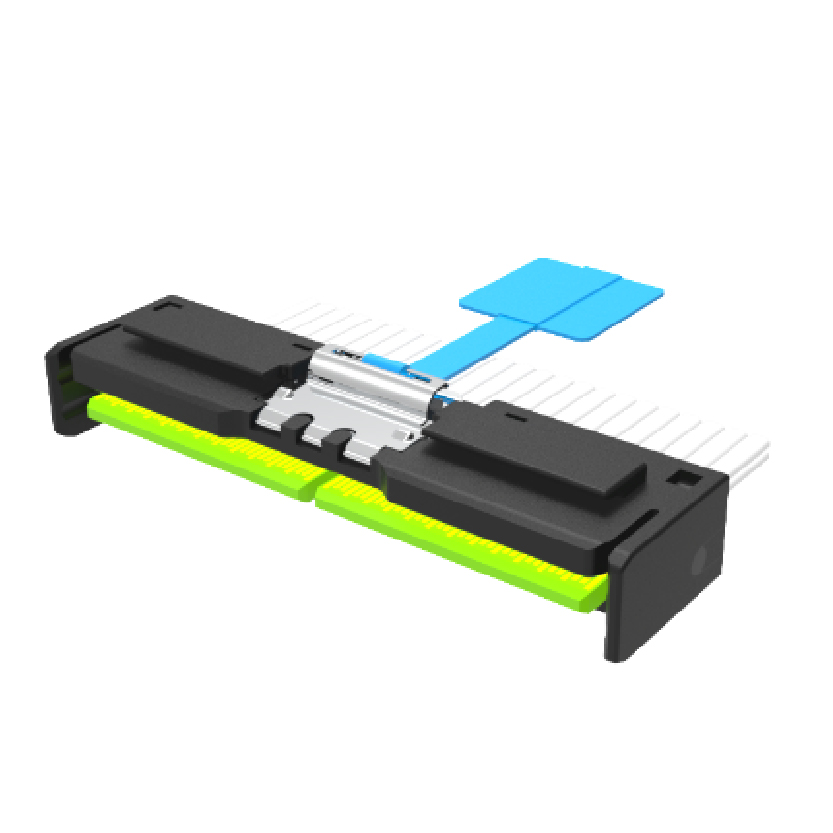

MCIO

ACES MCIO Series is designed as a low-profile connector with high density and a high-speed solution that can help clients design server and networking equipment for high data rate signal transmission.
It's also compatible with SNIA SFF-TA-1016 and PCIe Gen5 standard defined by PCI-SIG. To meet the demand for higher speed requirements, ACES offers products that can transmit the high-speed signal up to 56G PAM4/PCIe Gen5 based on clients' needs

进阶搜寻

Series


Family

Type

Signal Wire Size

Impedance

Cable Length

Lock to mating part

Environmental Compliance

High Speed Support

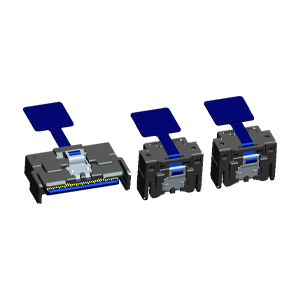

MCIO_124P_16i_LSE_85ohm Cable Assembly_Have pull tab and without pull tab

MCIO_124P_16i_LSE_85ohm Cable Assembly_Have pull tab and without pull tab

124P LSE

Straight to Lift Side Exit

29 AWG


1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

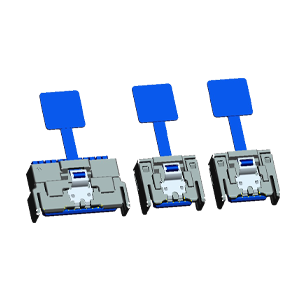

MCIO_124P_16i_ST_85ohm Cable Assembly_Have pull tab

MCIO_124P_16i_ST_85ohm Cable Assembly_Have pull tab

124P ST

Straight to Straight

29 AWG

85 Ohm

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

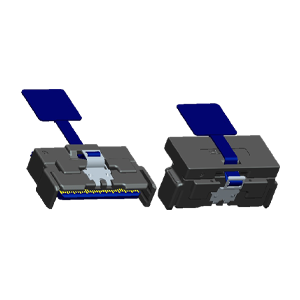

MCIO_148P_24i_ST_85ohm Cable Assembly_Have pull tab

MCIO_148P_24i_ST_85ohm Cable Assembly_Have pull tab

148P ST

Straight to Straight

29 AWG

-

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

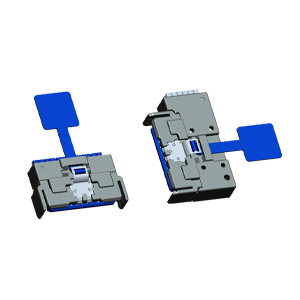

MCIO_38P_4i_ST_85ohm Cable Assembly_Have pull tab

MCIO_38P_4i_ST_85ohm Cable Assembly_Have pull tab

38P ST

Straight to Straight

29 AWG

85 Ohm

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

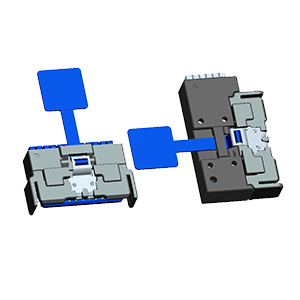

MCIO_74P_8i_LSE_85ohm Cable Assembly_Have pull tab and without pull tab

MCIO_74P_8i_LSE_85ohm Cable Assembly_Have pull tab and without pull tab

74P LSE

Straight to Lift Side Exit

29 AWG

85 Ohm

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

MCIO_74P_8i_RA_85ohm Cable Assembly_Have pull tab

MCIO_74P_8i_RA_85ohm Cable Assembly_Have pull tab

74P RA

Straight to Right Angle

29 AWG

85 Ohm

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

MCIO_74P_8i_RSE_85ohm Cable Assembly_Have pull tab and without pull tab

MCIO_74P_8i_RSE_85ohm Cable Assembly_Have pull tab and without pull tab

74P RSE

Straight to Right Side Exit

29 AWG

85 Ohm

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)

MCIO_74P_8i_ST_85ohm Cable Assembly_Have pull tab

74P_8i_ST

74P ST

Straight to Straight

29 AWG

85 Ohm

1.0 meters Max.

With latch

RoHS

PCIe Gen 5(16GT/s)
