Fully Shielded Type
Features
Pitch: 0.4mm
Circuits: 30 pins
Mounting Type: SMT
Operation Direction: Vertical
Functions: fully shielded and mechanical lock
High Speed
Features
Pitch: 0.40, 0.50mm
Circuits: 10~50 pins
Mounting Type: SMT
Operation Direction: R/A, S/T
Row: Single
High Power
Features
Pitch: 1.00~3.96mm
Circuits: 2~50 pins
Mounting Type: T/H, SMT
Operation Direction: R/A, S/T
Row: Single, Double
Lock Type
Features
Pitch: 1.00~3.96mm
Circuits: 2~50 pins
Mounting Type: T/H, SMT
Operation Direction: R/A, S/T
Row: Single, Double
Wafer
Features
Pitch: 1.00~3.96mm
Circuits: 2~50 pins
Mounting Type: T/H, SMT
Operation Direction: R/A, S/T
Row: Single, Double
Housing
Features
Pitch: 1.00~3.96mm
Circuits: 2~50 pins
Row: Single, Double
Terminal
Features
Pitch: 1.00~3.96mm
Current: 0.5~7A
IDC Female
Features
Pitch: 0.60~1.25mm
Circuits: 2~18 pins
IDC Male
Features
Pitch: 0.60~1.25mm
Circuits: 2~18 pins
Mounting Type: SMT
Operation Direction: R/A, S/T
Row: Single Row
Coaxial Plug
Features
Pitch: 0.40~1.00mm
Circuits: 10~50 pins
Coaxial Rcpt
Features
Pitch: 0.40~1.00mm
Circuits: 10~50 pins
Mounting Type: SMT
Operation Direction: R/A, S/T
Row: Single, Double

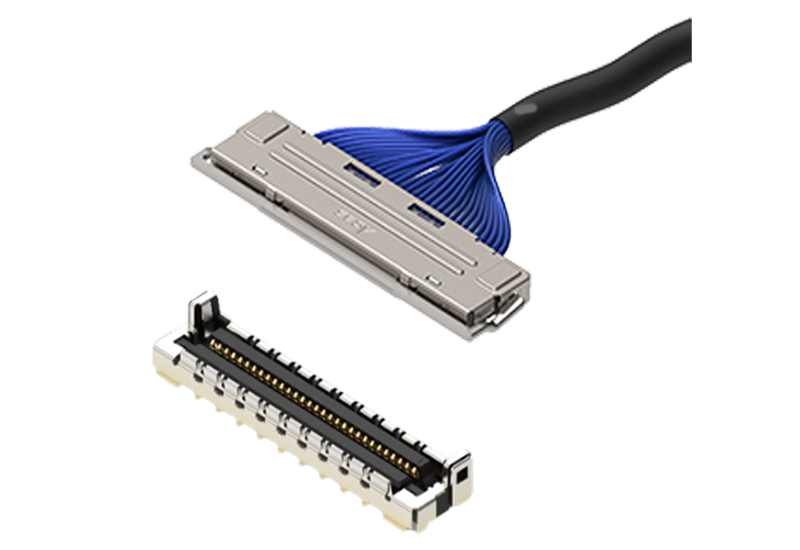

LVDS Cable
As 5G Technology expands and the data transmission rate keeps rising, the antenna and EMI interference issues are getting more serious. ACES Micro Coaxial Connector series is the micro-coaxial solution designed for applications that need high data rate transmission and EMI mitigation. 51495/51496 series has a high data transfer rate up to Thunderbolt 3 and has complete shielding with multiple grounds for mitigating EMI issues.
