Electrical
Voltage: 30 V AC (per pin)
Current: 0.5A (per pin)
Contact Resistance: 30 mΩ MAX.
Dielectric Withstanding Voltage: 250 VAC MIN.
Operating Temperature: -40°C to +85°C
Specification(Abbreviation)

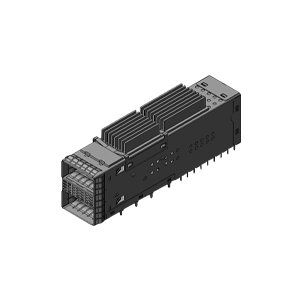

Family: QSFP DD
Connector/Cage: Connector
Interface: Dual Stack
PCB Mounting: T/H
Operation Direction: R/A
Center Height (mm): 12.9
PCB to Top Height: 31.8
Current (A): 1
Rated Voltage (V): 30
Life Test (cycles): 100
Product Height (mm): 31.8
Product Length (mm): 88.3
