Electrical
Voltage: 30 V AC
Current: 1.8 A
Contact Resistance: 50 mΩ MAX.
Dielectric Withstanding Voltage: 100 V AC/rms
Insulation Resistance: 100 MΩ MIN.
Operating Temperature: -55℃ ~ +85℃

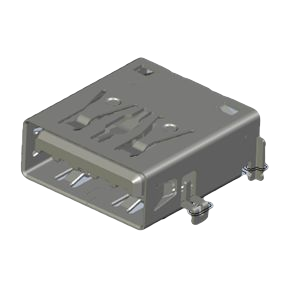

Specification(Abbreviation)
Family: A type
Interface: Standard Sink
PCB Mounting: SMT
Operation Direction: R/A
Center Height (mm): 2.10
Product Length (mm): 14.05
Product Height (mm): 5.42
PCB to Top Height (mm): 4.81
