Electrical
Voltage Rating: 150V AC.
Current Rating: 1.0A Max.
Contact Resistance: 50mΩ .
Dielectric Withstanding Voltage:1500 V AC MIN.
INSULATION Resistance:500MΩ min.
Operating Temp:0℃ ~ +70℃
Specification(Abbreviation)

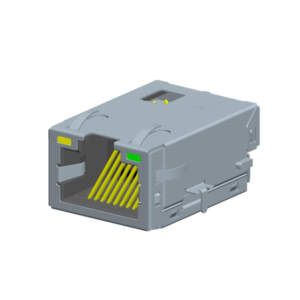

Family: RJ+Transformer
Type: Sink
PCB Mounting: DIP
Operation Direction: Right angle
Product Width (mm): 19.6
Product Length(Depth)(mm): 23.75
Product Height(mm): 11.45
PCB to Top Height (mm): 7.75
Tab(Up/Down): Tab Up
LED (Yes/No): Yes
Ports: 1 x 1
Position/Contact: 8P8C
Transformer Type: 1G+SURGE
HSF: HF
