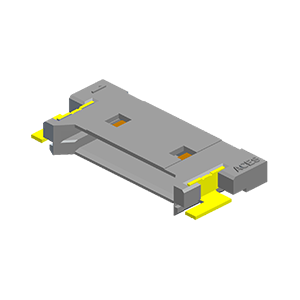

50277-xxxxx-xxx

Electrical

Voltage: 200 Volts AC (per pin)
Current: AWG#28/1.8A
AWG#30/1.0A
Contact Resistance: 55 mΩ max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 100MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 1.25

PCB Mounting: SMT(sink)

Operation Direction: S/R R/A

Product Height (mm): 1.35

AWG#: 26~32

Current (A): AWG#26/2.3A, AWG#26/2.5A(UL10064), AWG#28/1.8A, AWG#30/1.0A, AWG#32/0.8A

Mates With: Housing: 50280-xxxH/51330-xxxH; Terminal: 88232-T(AWG26~32)/ 88332-T(AWG34)

Outer Lock: No

Circuits: 2,3,4,5,6,7,8,9,10,12,14,20
