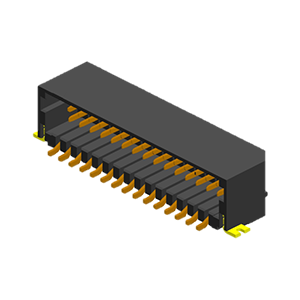

50418-xxxxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current: 1.0mm pitch:1.0 Amperes (per pin)
Contact Resistance: 55 mΩ max.
Dielectric Withstanding Voltage: 250 VAC Min.
Insulation Resistance: 100MΩ min.
Operating Temp. : -25℃ ~ +65℃



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 1

PCB Mounting: SMT

Operation Direction: D/R R/A

Product Height (mm): 4.23

AWG#: 28~32

Current (A): AWG#28/1.0A, AWG#30/1.0A, AWG#32/1.0A

Mates With: Housing: 50256-xxxH; Terminal: 88252-00xx(AWG28~32)/ 88604-000X(AWG34)

Outer Lock: No

Circuits: 40
