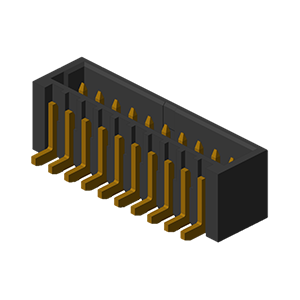

50481-xxxxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current: AWG#24/3.0A
AWG#26/3.0A
AWG#28/2.5A
AWG#30/1.5A
Contact Resistance: 40 m Ω MAX. (initial) per contact
20 mΩ MAX. Change allowed
Dielectric Withstanding Voltage: 500 VAC MIN.
Insulation Resistance: 500 MΩ MIN.
Operating Temperature : -25℃ to +85℃



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 1.5

PCB Mounting: SMT

Operation Direction: S/R S/T

Product Height (mm): 5

AWG#: 24~30

Current (A): AWG#24/3.0A, AWG#26/3.0A, AWG#38/2.5A, AWG#30/1.5A

Mates With: Housing: 50294-xxxH; Terminal: 91203-000xx(AWG 24~30)

Outer Lock: No

Circuits: 5,7,9,13
