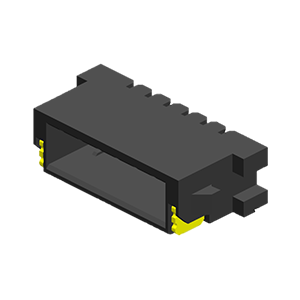

50485-xxxxx-xxx

Electrical

Voltage: 30 Volts AC DC (per pin)
Current: AWG#28/1.0A
AWG#30/0.8A
AWG#32/0.8A
Contact Resistance: 10 mΩ max.
Dielectric Withstanding Voltage: 500V AC Min.
Insulation Resistance: 100 MΩ min.
Operating Temp. : -40℃ ~ +85℃

Reference

Mated P/N：50486 50430-T



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 1

PCB Mounting: SMT

Operation Direction: S/R R/A

Product Height (mm): 2.58

AWG#: 28~32

Current (A): AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Mates With: Housing: 50486-xxxH; Terminal: 50430-T

Outer Lock: Yes

Circuits: 6,8,10,12
