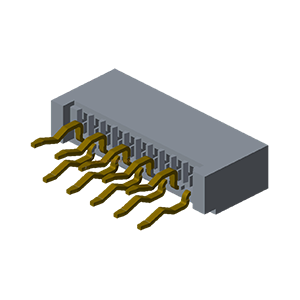

50657-xxxxx-xxx

Electrical

Voltage: 50 Volts AC(per pin)
Current: 0.5A(per pin)
Contact Resistance: 55 mΩ Max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 100MΩ Min.
Operating Temp. : -25℃ ~ +80℃



Specification(Abbreviation)

Family: NON-ZIF

Pitch (mm): 1.00

PCB Mounting: T/H

Operation Direction: S/T

Product Height (mm): 5.00

CableType: Normal

Contact Position: S/C

Cable Thickness(mm): 0.3±0.03

Circuits: 4,5,6,7,10,11,12,15,16,17,21,22,23,26,27
