Electrical
Voltage: 50 Volts AC (per pin)
Current Rating: 0.5 Amperes (per pin)
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 500 MΩ min.
Operating Temp. : -30℃ ~ +105℃

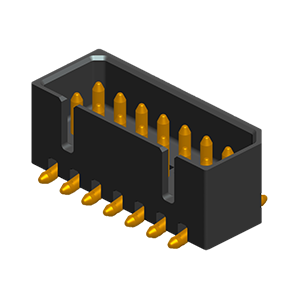

Specification(Abbreviation)
Type: Plug
Pitch(mm): 1.25
PCB Mounting: SMT
Operation Direction: D/R S/T
Product Height (mm): 4.25
Mating Height (mm): 5.1
Mates With: 51036
Circuits: 14
