Electrical
Voltage: 50 V AC (per pin)
Current Rating: 2 A (per pin)
Contact Resistance: 50 mΩ MAX.
Dielectric Withstanding Voltage: 250 VAC MIN.
Insulation Resistance: 1000 MΩ MIN.
Operating Temperature: -40℃ ~ +85℃

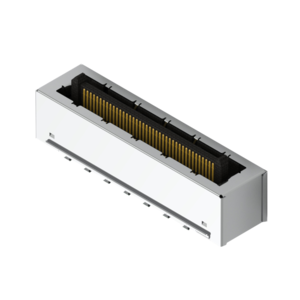

Specification(Abbreviation)
Type: Plug
Pitch(mm): 0.8
PCB Mounting: SMT
Operation Direction: D/R S/T
Product Height (mm): 13.3
Mating Height (mm): 15
Mates With: 51079
Circuits: 40,80
High Speed Support: PCIe Gen 3(8Gbps)
