Electrical
Voltage: 30 V AC/DC (per pin)
Current Rating: 0.3 A (per pin)
Contact Resistance: 30 m&Ω; MAX.
Dielectric Withstanding Voltage: 150 VAC MIN.
Insulation Resistance: 1000 MΩ MIN.
Operating Temperature: 40 to +85℃
Specification(Abbreviation)

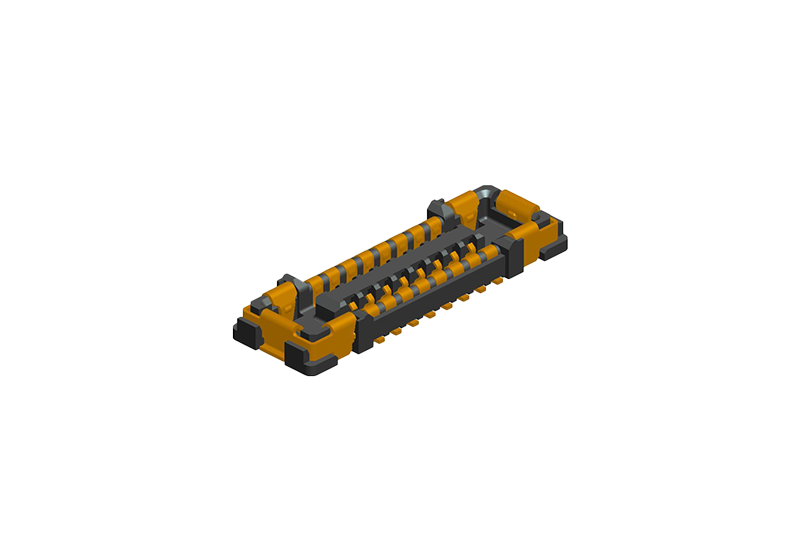

Type: Receptacle
Pitch(mm): 0.35
PCB Mounting: SMT
Operation Direction: D/R S/T
Product Height (mm): 0.6
Mating Height (mm): 0.6
Mates With: 51083
Circuits: 10, 16, 20
High Speed Support: PCIe Gen 4 (16Gbps)
