Electrical
Voltage: 30V AC
Current: AWG#28/1.0A
AWG#26/1.0A
AWG#24/2.0A
AWG#22/3.0A
Contact Resistance: 30mΩ max.
Dielectric Withstanding Voltage: 500V AC/rms
Insulation Resistance: 100 MΩ min.
Operating Temp. : -40℃ ~ +85℃
Specification(Abbreviation)

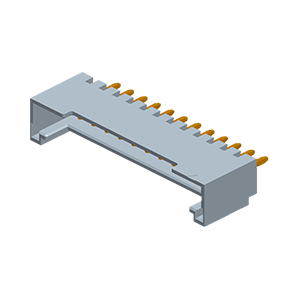

Family: Wafer
Pitch (mm): 2
PCB Mounting: T/H
Operation Direction: S/R S/T
Product Height (mm): 7.8
AWG#: 24~28
Current (A): AWG#24/2.0A, AWG#26/1.0A, AWG#28/1.0A
Mates With: Housing: 51210-xxxH; Terminal: 51210-T(AWG24~28)
Outer Lock: Yes
Circuits: 7,10,12
