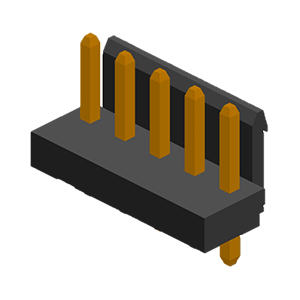

51281-xxxxx-xxx

Electrical

Voltage: 250V AC(Per Pin)
Current: AWG#16/10.0A
AWG#22/4.0A
Contact Resistance: 50mΩ max.
Dielectric Withstanding Voltage: 300V AC/rms
Insulation Resistance: 500 MΩ min.
Operating Temp. : -40℃ ~ + 85℃



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 3.96

PCB Mounting: T/H

Operation Direction: S/R S/T

Product Height (mm): 10.9

AWG#: 16~22

Current (A): AWG#16/10.0A, AWG#18//7.0A, AWG#20//6.0A, AWG#22/4.0A

Mates With: Housing: 51282-xxxH; Terminal: 51282-T01L-001(AWG#20~22)/ 51282-T01L-002 (AWG#16~18)

Outer Lock: Yes

Circuits: 2,3,4,5,16
