Electrical
Voltage: 50 Volts AC (per pin)
Current: AWG#28/1.0A
AWG#30/1.0A
AWG#32/0.8A
Contact Resistance: 40 mΩ max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 1000MΩ min.
Operating Temp. : -40℃ ~ +85℃
Specification(Abbreviation)

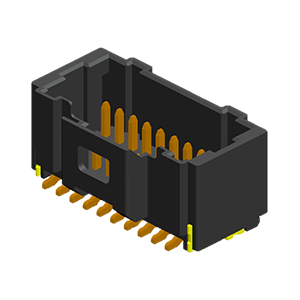

Family: Wafer
Pitch (mm): 1
PCB Mounting: SMT
Operation Direction: D/R S/T
Product Height (mm): 5.41
AWG#: 28~32
Current (A): AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A
Outer Lock: Yes
Circuits: 20
