Electrical
Voltage: 70 Volts AC/AD
Current: High Power Contacts
14A (per beam) / 42A(per pin)
Low Power Contacts: 5A (per beam)
Contact Resistance: 20 mΩ MAX.
Dielectric Withstanding Voltage: 1000 VAC/rms.
Insulation Resistance: 5000MΩ MIN.
Operating Temperature: -40℃~+85℃
Specification(Abbreviation)

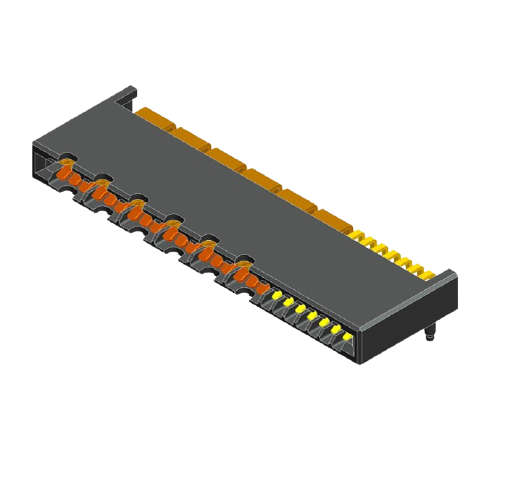

Family: Power Card Edge
Pitch(mm): 2.54
PCB Mounting: T/H
Operation Direction: R/A
