Electrical
Voltage: 30 Volts AC
Current: 3.0 Amperes Max.
Contact Resistance: 30 mΩ Max.
Dielectric Withstanding Voltage: 500 V AC/rms
Insulation Resistance: 1000 M Ω Min
Operating Temperature : -40℃ to +85℃

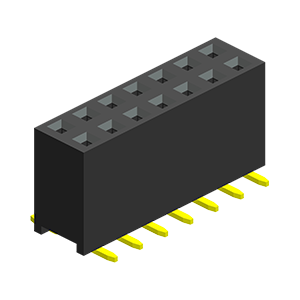

Specification(Abbreviation)
Family: Female
Pitch(mm): 2.54
PCB Mounting: SMT
Operation Direction: S/T
Mating Height (mm): 18.01
Mates With: 60246
Circuits: 20,30
