Electrical
Voltage: 30 Volts
AC Current: 2.0 Amperes Max.
Contact Resistance: 30 mΩ Max.
Dielectric Withstanding Voltage: 500 V AC/rms
Insulation Resistance: 1000 M Ω Min
Operating Temperature : -40℃ to +85℃
Specification(Abbreviation)

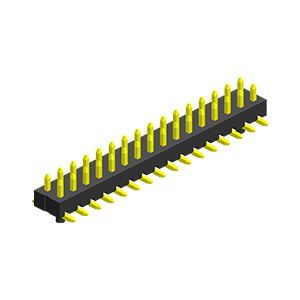

Family: Male
Pitch(mm): 2
PCB Mounting: SMT
Operation Direction: S/T
Mating Height (mm): 4.8
Mates With: 60290
Circuits: 32
Download > 3D
Download
2D
SPEC
