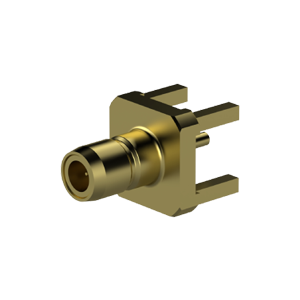

B101-900A

Electrical

Impedance: 50 Ω
Frequency: 0 to 4 GHz
Working Voltage: 335 Vrms MAX.
Dielectric Withstanding Voltage: 1000V AC In 1-MIN.
V.S.W.R.: 1.25+0.04F (F in GHz)
Engagement Force: 14.0 Pounds Max.
Disengagement Force: 2.0 Lbs ~14.0 Lbs
Connector Durability: 500 Mating Cycles



Specification(Abbreviation)

Family: SMB

Mounting Type: Through Hole

Operation Direction: S/T

PLUG/JACK: JACK

Impedance: 50 Ohms
