Electrical
Impedance: 50 Ω
Frequency: 0 to 4 GHz
Working Voltage: 335 Vrms MAX.
Dielectric Withstanding Voltage: 1000V AC In 1-MIN.
V.S.W.R.: 1.35+0.04F (F in GHz)
Engagement Force : 14.0 Pounds MAX.
Disengagement Force: 2.0 Lbs ~14.0 Lbs
Connector Durability: 500 Mating Cycles

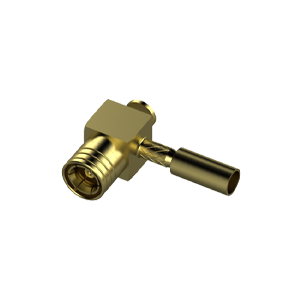

Specification(Abbreviation)
Family: SMB
Mounting Type: Cable
Operation Direction: R/A
PLUG/JACK: PLUG
Impedance: 50 Ohms
