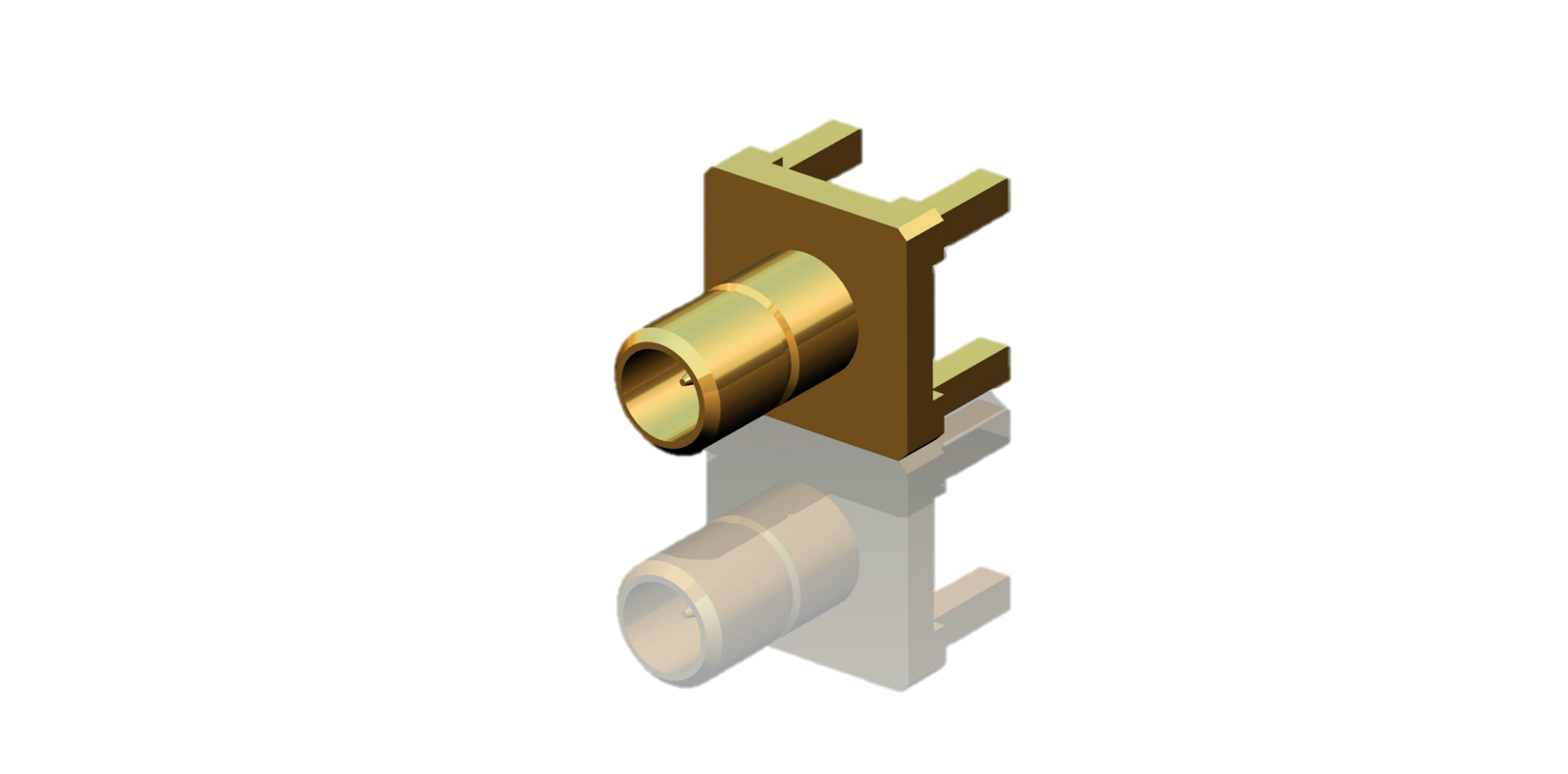

SMB
Impedance: 50 Ohms
Frequency: 0 to 4 GHz
Working Voltage:
RG178,196=250 Vrms at sea level max
RG174,188,316=335 Vrms at sea level max
Insulation resistance:1000 Meg Ohms min.
Dielectric Withstanding Voltage:
RG178,196=750 Vrms at sea level max
RG174,188,316=1000 Vrms at sea level max
V.S.W.R.: R/A
RG178,196= 1.30+0.04F(F IN GHz)
RG174,188,316= 1.25+0.04F(F IN GHz)
STRAIGHT:
RG178,196= 1.45+0.06F(F IN GHz)
RG174,188,316= 1.35+0.04F(F IN GHz)
Engagement Force: 14.0 Lbs Max.
Disengagement Force: 2.0 Lbs Max.~14.0 Lbs Max.
Connector Durability: 500 Mating Cycles
