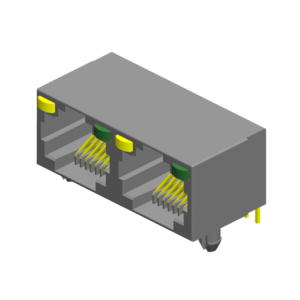

31571-xxxxxxxxx-xxx

Electrical

Voltage Rating: 150V AC.
Current Rating: 1.5A Max.
Contact Resistance: 30mΩ .
Dielectric Withstanding Voltage: 1000 V AC MIN.
INSULATION Resistance:500MΩ min.
Operating Temp:-40℃ ~ +85℃



Specification(Abbreviation)

Family: RJ

Type: Standard

PCB Mounting: DIP

Operation Direction: R/A

Product Width (mm): 32.25

Product Length(Depth)(mm): 15.75

Product Height(mm): 13.2

PCB to Top Height (mm): 13.2

Tab(Up/Down): Tab Up

LED (Yes/No): Yes

Ports: 1 x 1

Position/Contact: 8P8C

Transformer Type: N/A

HSF: ROHS
