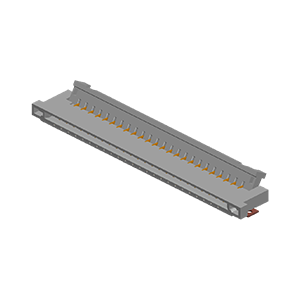

51592-xxxxx-xxx

Electrical

Voltage: 50Volts AC(per pin)
Current: 0.5A (per pin)
Contact Resistance: 50mΩ Max.
Dielectric Withstanding Voltage: 300V AC Min.
Insulation Resistance: 500 MΩ Min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Back Flip Easy-on

Pitch (mm): 1.00

PCB Mounting: SMT

Operation Direction: R/A

Product Height (mm): 1.50

CableType: Normal

Contact Position: D/C

Cable Thickness(mm): 0.3±0.03

Circuits: 10,24,26
