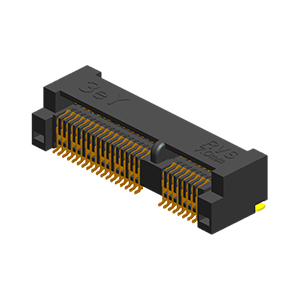

51714-xxxxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current:0.5 A (per pin)
Contact Resistance: 75 mΩ max.
Dielectric Withstanding Voltage: 300 V AC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +80℃



Specification(Abbreviation)

Family: Mini PCI Express

Type: Reverse

Pitch(mm): 0.8

PCB Mounting: SMT

Operation Direction: R/A

Product Height (mm): 7.00

Center Height (mm): 4.60

PCB To Top Height (mm): 4.60

Circuits: 52
