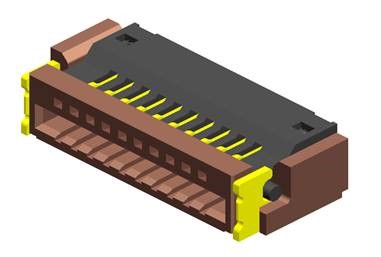

52553-xxxxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current: 0.5A (per pin)
Contact Resistance: 100 mΩ Max.
Dielectric Withstanding Voltage: 200 VAC Min.
Insulation Resistance: 1000 MΩ Min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Back Flip Easy-on

Pitch (mm): 0.40

PCB Mounting: SMT

Operation Direction: R/A

Product Height (mm): 1.20

CableType: With Notch

Contact Position: B/C

Cable Thickness(mm): 0.2±0.03

Circuits: 10
