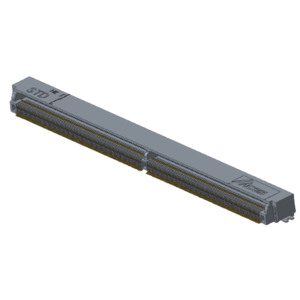

52741-314xx-xxx

Electrical

Working Voltage Less than 36 Volts AC (per pin)
Voltage:  50 Volts AC (per pin)
Current: 0.5 Amperes (per pin) For (Signal area) & 0.8 Amperes (per pin) For (Power area )
Operating Temperature : -55℃ to +85℃

Reference

Online ordering




Specification(Abbreviation)

Family: MXM

Type: Standard

Pitch(mm): 0.5

PCB Mounting: SMT

Operation Direction: R/A

Product Height (mm): 5.2

Center Height (mm): 2.7

PCB To Top Height (mm): 5

Circuits: 314

HighSpeed Support: PCIe Gen 4(16GT/s)
